product description

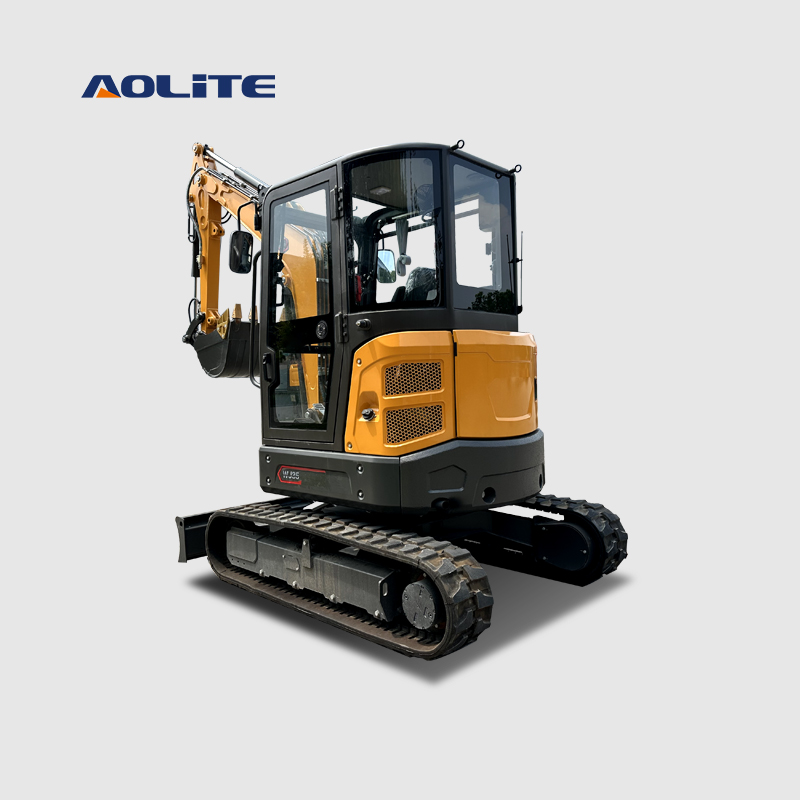

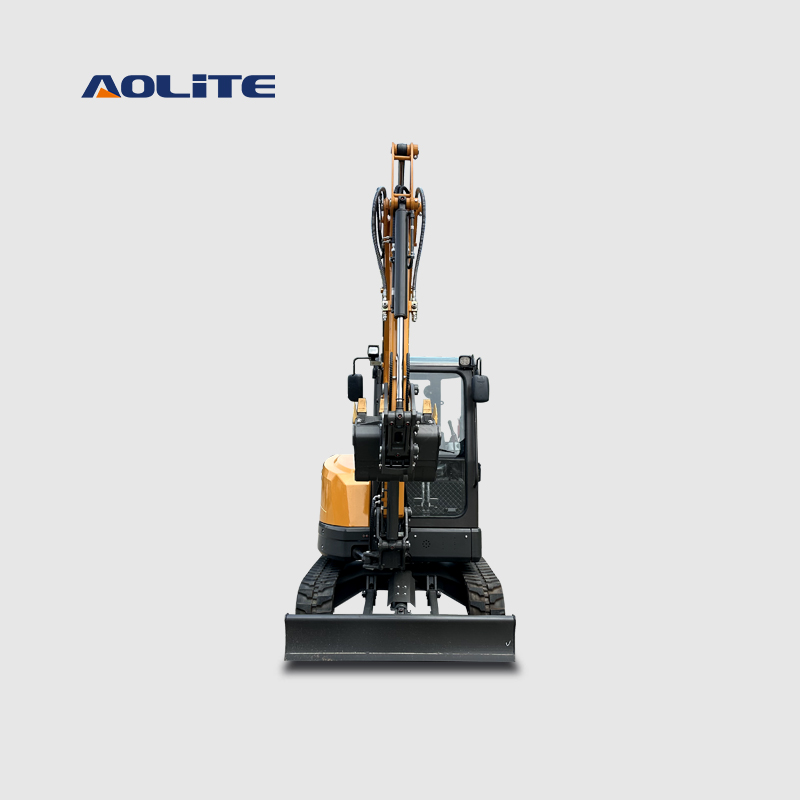

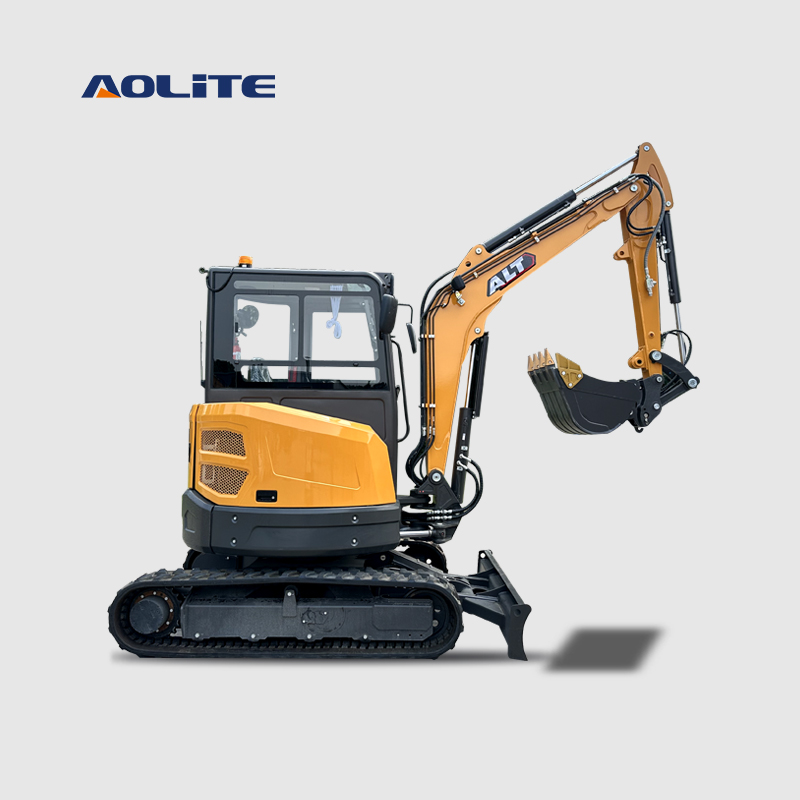

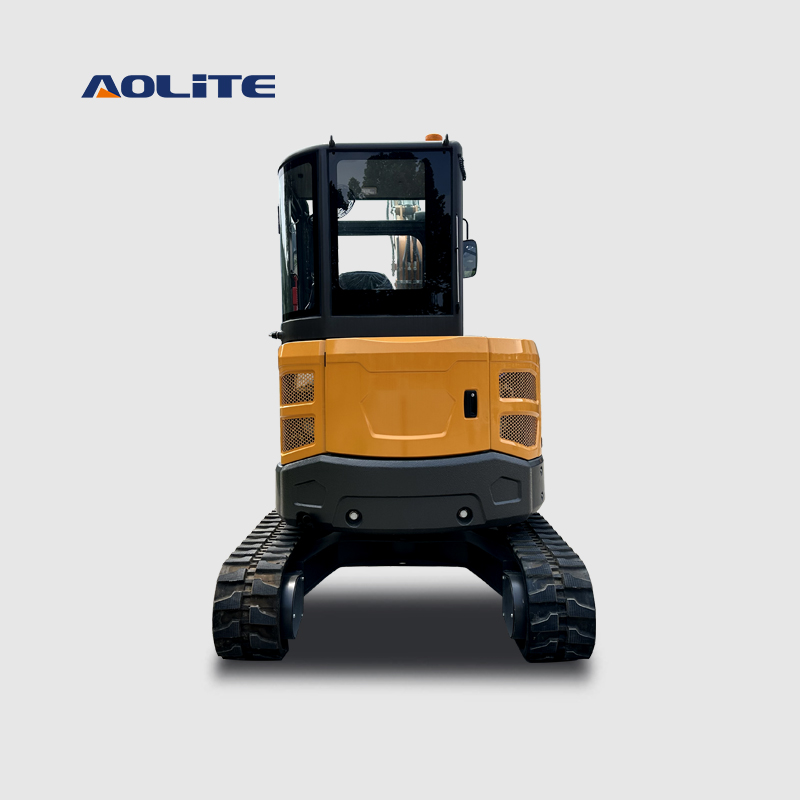

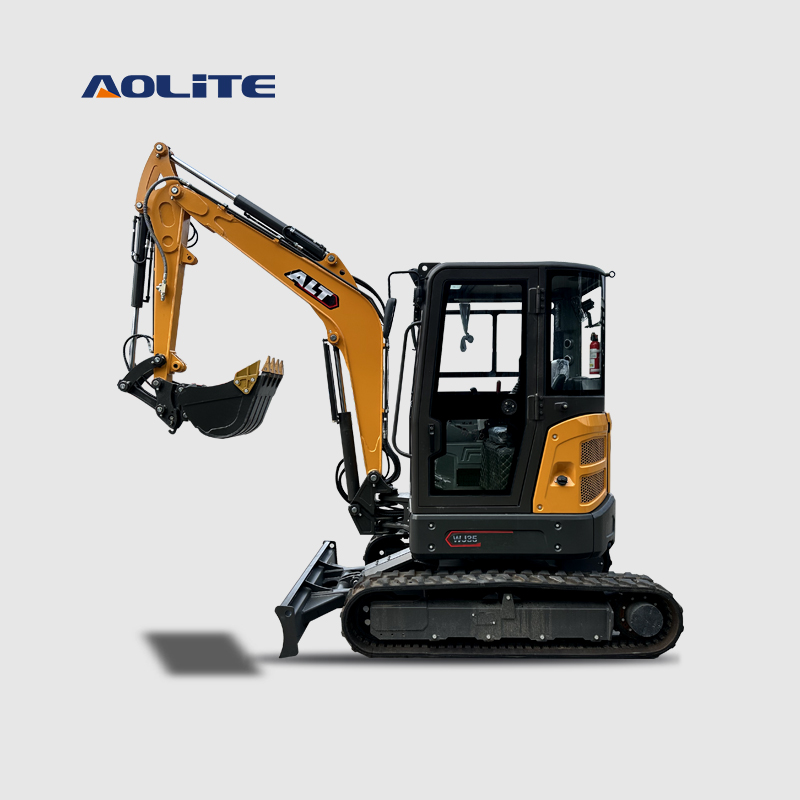

"AOLITE" brand WJ35 diesel crawler excavator
?
-- Efficient & Eco-Friendly
Features a Euro 5/EPA4 Kubota engine delivering robust power with lower fuel consumption.
-- Outstanding Performance
30.4KN digging force and 5.48m working radius handle various tasks with ease.
-- Superior Stability
300mm tracks and 32Kpa ground pressure ensure excellent passability on wet/rough terrain.
-- Extended Operation
40L fuel tank and 44L hydraulic tank significantly extend continuous working hours.
-- Enhanced Maneuverability
Compact design with 860mm tail swing radius provides excellent performance in tight spaces.
-- Multi-Functional
Adjustable blade and asymmetric boom swing enable versatile auxiliary operations.
?
| ENGINE | |
| Emission Standard | Euro 5,EPA4 |
| Make /Model | KUBOTA?/D1703 |
| Power /Rotation speed | 18.2kW(25HP)@2200rpm |
| Number of cylinder | 3 |
| Type | In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated |
| Max.torque | 97.4N.m/1500rpm |
| Displacement | 1.642L |
| TRACK DRIVING?SYSTEM | |
| Maximum Travel speed(High/low) | 4.4/2.4km/h |
| Width of?steel?track shoe | 300mm |
| Carrier roller(Each side) | 1 |
| Supporting roller(Each side) | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.12m3 |
| Swing speed | 12rpm |
| Maximum Grade ability | 58%(30°) |
| Ground pressure | 32Kpa |
| Maximum Bucket digging force | 30.4KN |
| Maximum Arm digging force | 18.2KN |
| Hydraulic system pressure | 22.5Mpa |
| Machine weight | 3810kg |
| Boom length | 2535mm |
| Arm length | 1400mm |
| Fuel tank capacity | 40L |
| Hydraulic oil tank capacity | 44L |
| Engine oil capacity | 7L |
| Radiator capacity | 3.8L |
| Final drive | 2*0.7L |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 4915mm*1720mm*2525mm |
| Axle base(Track length on ground) | 1670mm |
| Length of rubber track | 2154mm |
| Track gauge | 1420mm |
| Minimum Ground clearance | 295mm |
| Swing radius at tail | 860mm |
| Swing radius at front | 2538mm |
| Height of blade | 350mm |
| WORKING RANGE | |
| Maximum Digging height | 4800mm |
| Maximum Dumping height | 3406mm |
| Maximum Digging depth | 3208mm |
| Maximum Vertical digging depth | 2957mm |
| Maximum Digging?distance(working radius) | 5480mm |
| Maximum digging distance (on ground) | 5359mm |
| Minimum swing radius | 2530mm |
| Max.height when min.swing radius | 3655mm |
| Maximum Lifting height of blade | 365mm |
| Maximum Cutting depth of blade | 385mm |
| Boom swing angle(Left/Right) | 55°/65° |
?
AOLITE Brand WJ35 crawler excavator package:
-- 1 set in 1*20GP container
-- 4 sets in 1*40HQ container
