product description

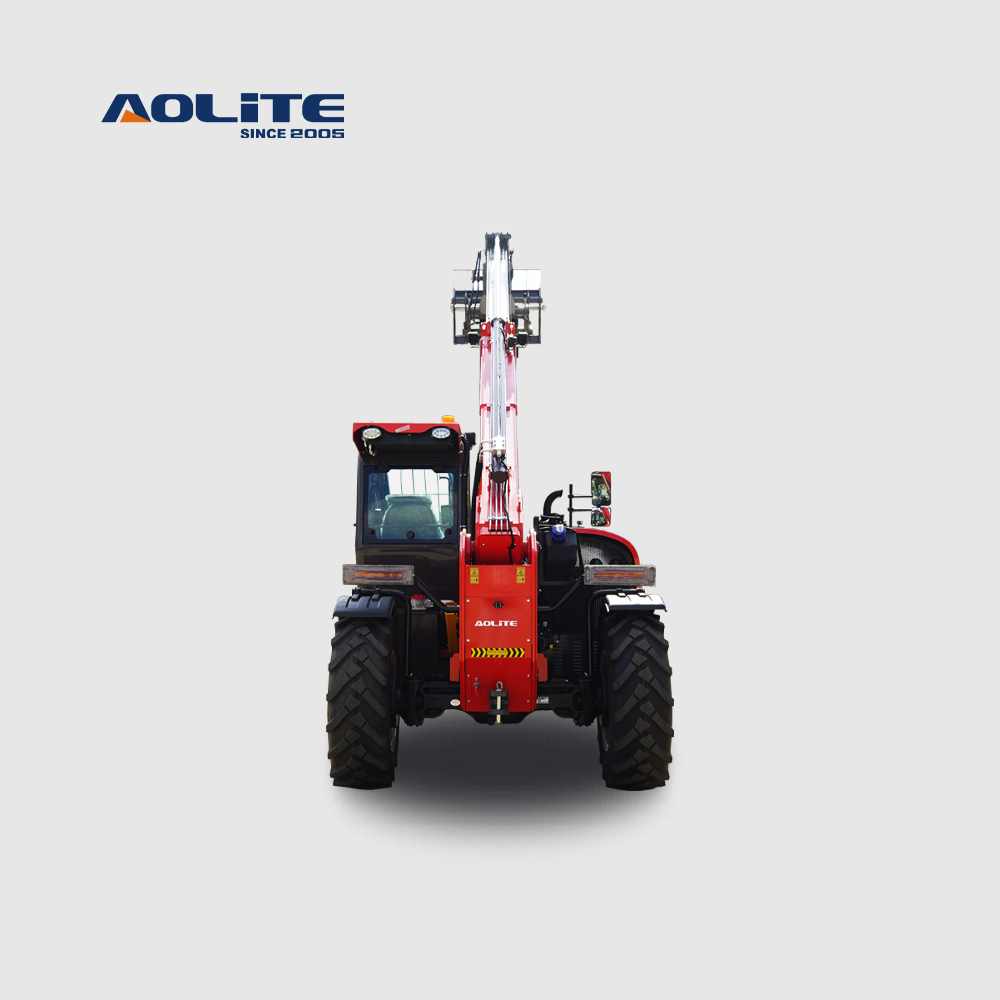

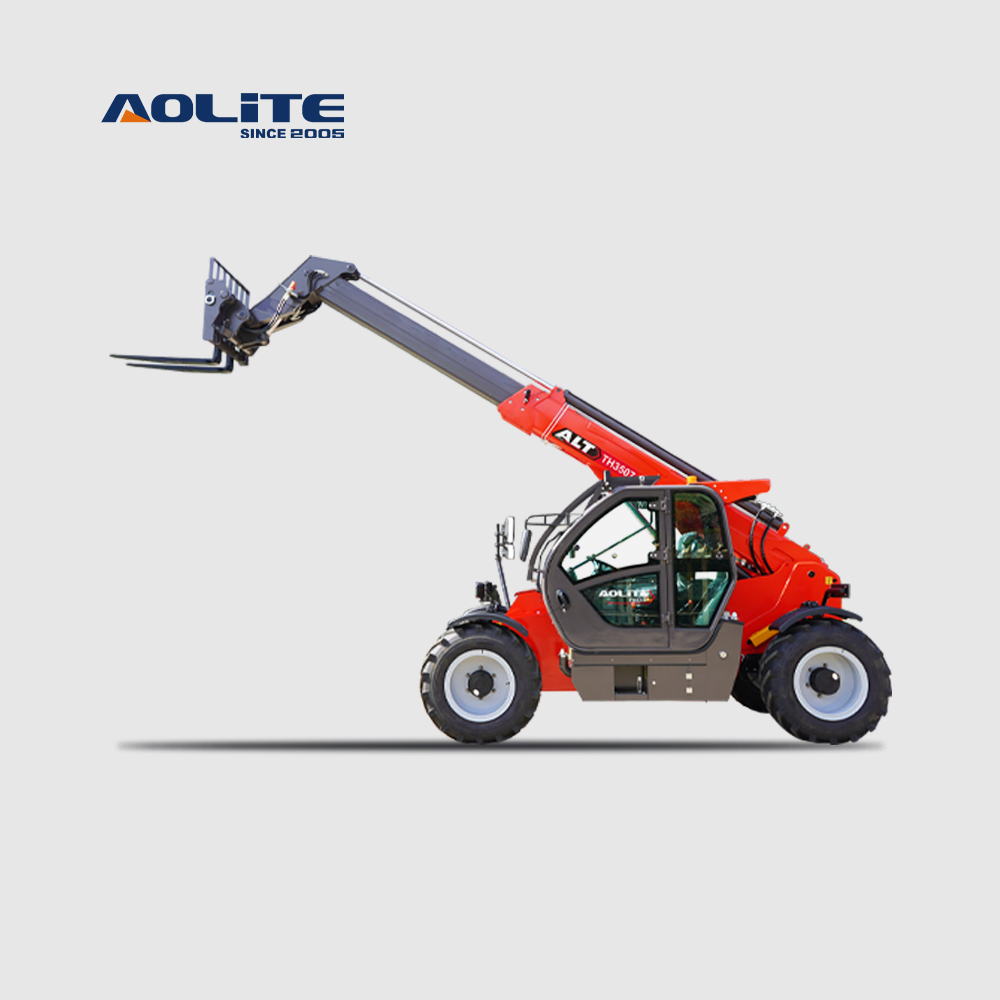

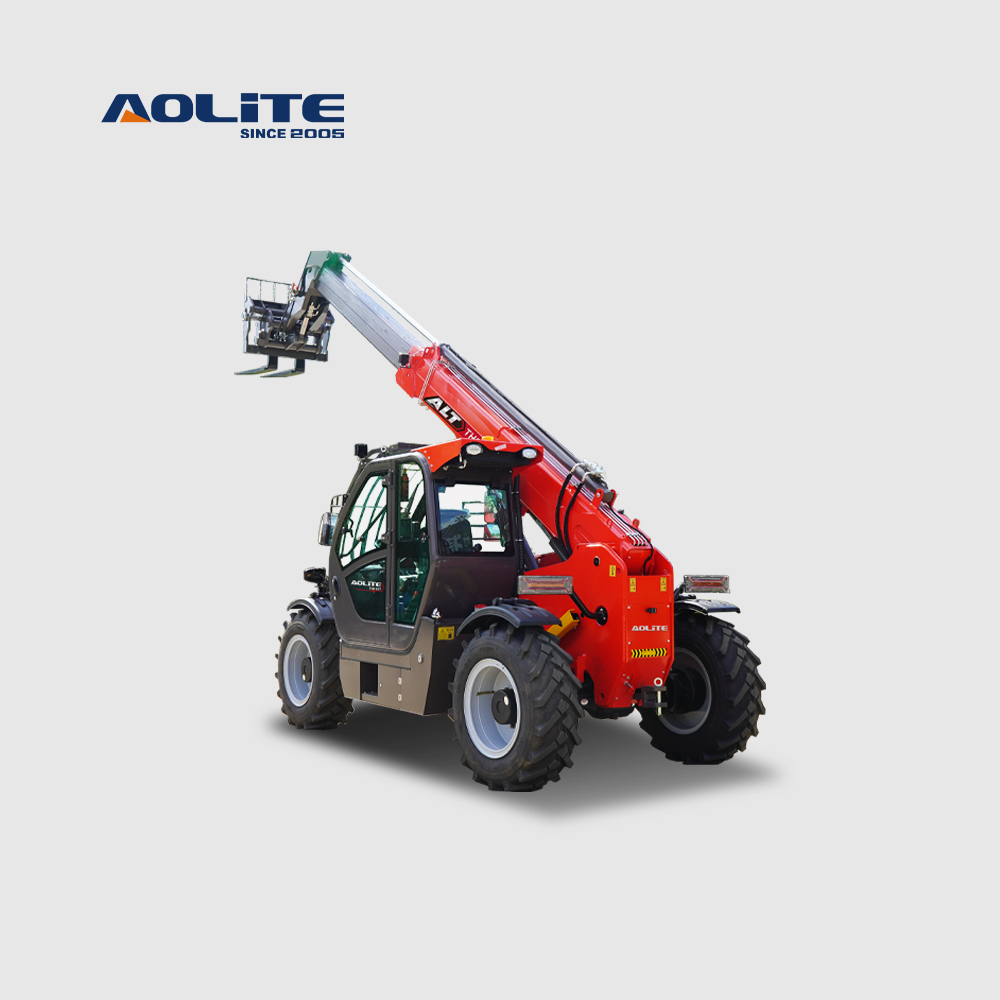

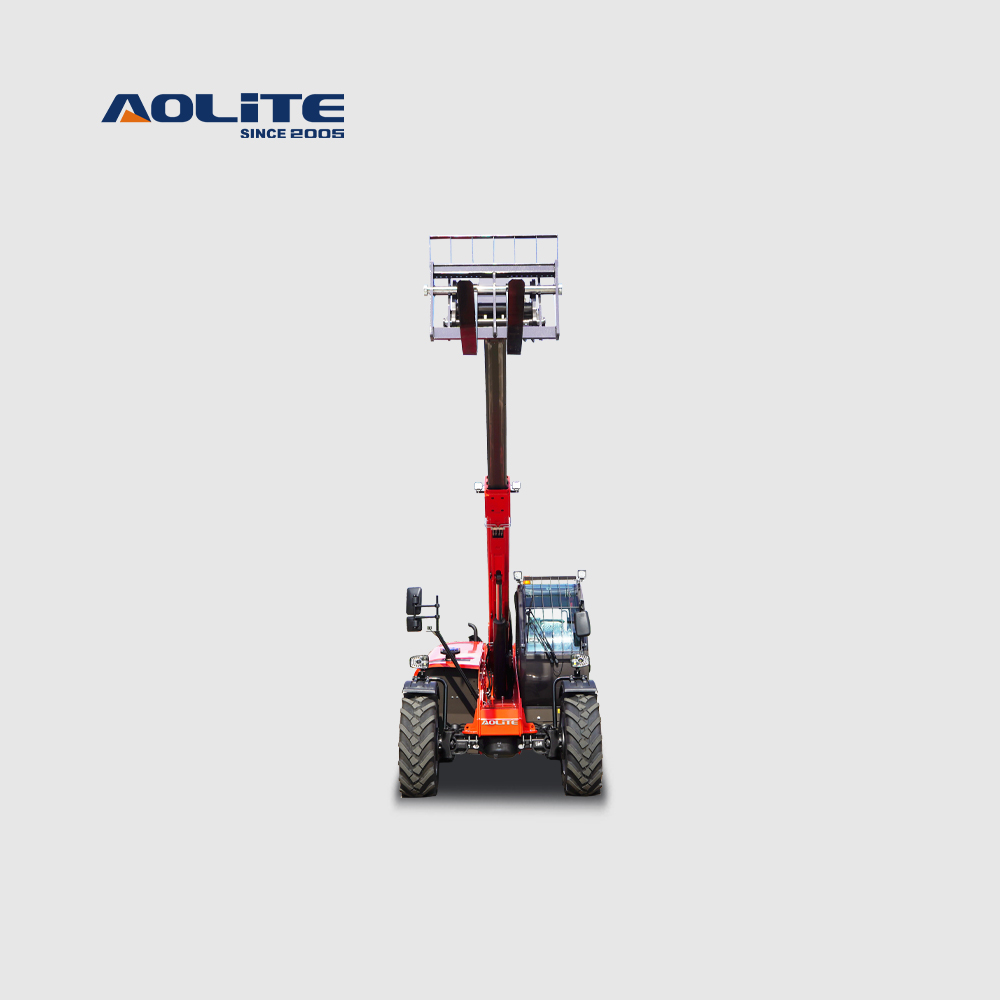

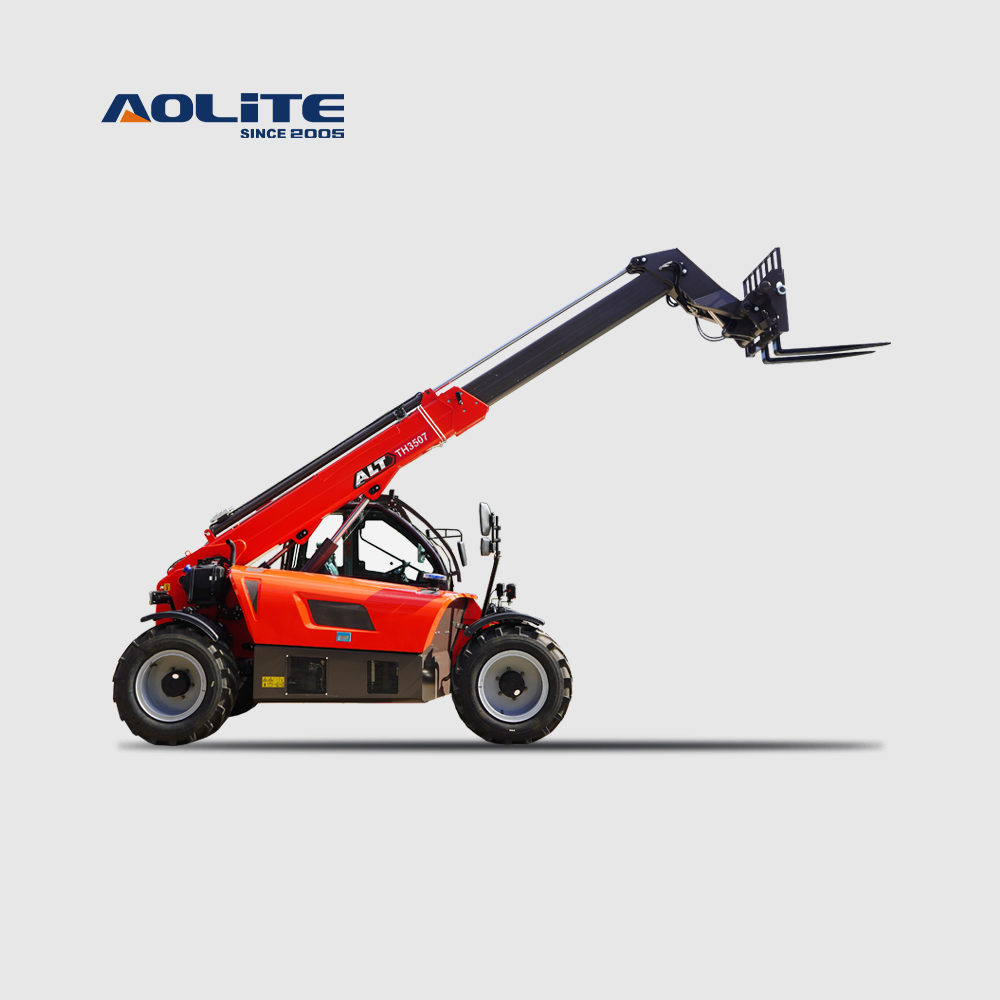

"AOLITE" brand TH3507 diesel mini telehandler
?
—Move 3.5 Tons Per Load, Do More in Fewer Trips
With rated capacity 3500kg, lifting height up to 7m, and maximum outreach reaching 3.2m, the TH3507 handles pallets, bags, bricks, and materials of all kinds. Quick hitch system lets you swap buckets, forks, and other attachments in seconds, so you stay productive no matter what the job demands.
—Built for Every Season, Every Surface
From muddy spring fields and summer construction sites to autumn feedlots and winter snow-covered lots, four-wheel drive and three steering modes (front, rear, crab) give you the traction and agility to keep moving when others get stuck.
—Turns Tight, Works Smart in Narrow Spaces
With an outside turning radius of just 4.25m and an overall width of 2.2m, you can confidently back into loading docks, rotate in tight corners, and weave between storage racks without breaking a sweat.
—Stay Comfortable and in Control All Day

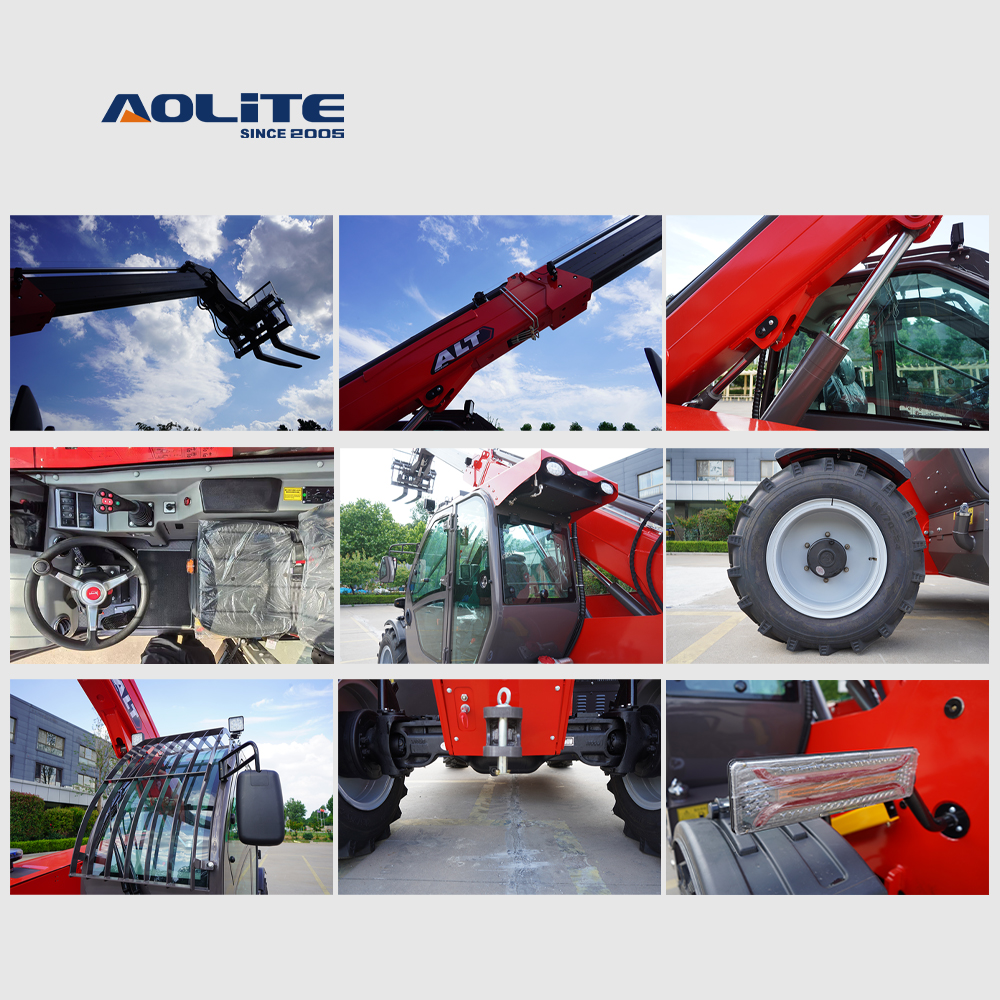

A spacious, full-glass cab gives you commanding visibility to the front, rear, and overhead. The sensitive stepless drive reduces the effort of constant starting, stopping, and direction changes, so you stay fresh through long shifts, tough conditions, and back-to-back tasks.
?
Specifications:
| Capacities | |
| Max.capacity | 3500kg |
| Max.lifting ?height | 7.0m |
| Max.outreach | 3.2 m |
| Weight and dimensions | |
| Overall length tocarriage | 4.65 m |
| Length to face offorks | 5.87m |
| Overall width | 2.2m |
| Overall height | 2.55m |
| Wheelbase | 3.15m |
| Ground clearance | 0.35 m |
| Overall cab width | 0.84m |
| Tilt-upangle | 12° |
| Tilt-down angle | 114° |
| External turning radius(over tyres) | 4.25 m |
| Unladen weight(with fork) | 7600 kg |
| Tires type | Pneumatic |
| Standard tires | 16/70-20 |
| Forks length/width/section | 1220 mm x125 mm/50 mm |
| Performances | |
| Lifting | 10s |
| Lowering | 7 s |
| Extension | 12s |
| Retraction | 8.6 s |
| Crowd | 4.8 s |
| Dump | 3.4s |
| Engine | |
| Engine brand | Yuchai |
| Engine norm | National Ⅱ |
| Max.fuel sulphur content | 5000 ppm |
| Engine model | YCD4M22T-105 |
| Number of cylinders /Capacity of cylinders | 4-4400cm3 |
| 1.C.Engine powerrating-Power | 103 Hp/77.3 kW |
| Max.torque/Engine rotation | 400 Nm @1400 rpm |
| Drawbar pull (Laden) | 10000 daN |
| Transmission | |
| Transmission type | Torque converter |
| Number of gears (forward /reverse) | 2/2 |
| Max.travel speed | 35 km/h |
| Parking brake | Automaticair-cut brake |
| Service brake | immersed multi-discs braking on front &rear axles |
| Hydraulics | |
| Hydraulic pumptype | Gear?pump |
| Hydraulic flow /Pressure | 100l/min |
| Tank capacities | |
| Engine oil | 5.5L |
| Hydraulic oil | 70L |
| Fuel tank | 95L |
| Noise and vibration | |
| Noise at driving position(LpA) | 82 dB |
| Noiseto environment(LwA) | 105 dB |
| Vibration on hands/arms | <2.50m/s2 |
| Miscellaneous | |
| Steering wheels (front/rear) | 2/2 |
| Drive wheels (front/rear) | 2/2 |
| Safety cab homologation | FOPS level 2 cab |
AOLITE Brand TH3507 diesel mini telehandler package:
-- 1~2 sets in 1*40GP container
