product description
Inquiry
product description
"AOLITE" brand LW65 diesel wheel excavator
?
—One Machine, Endless Jobs
From digging trenches and loading trucks to breaking concrete and leveling ground, standard hammer piping and dozer blade let you switch between bucket, breaker, and blade in minutes. Maximum dumping height 4370mm easily clears high-side trucks.
—Dig Deep, Reach Far, Turn Tight
Maximum digging depth 3571mm, maximum digging radius 5898mm, tail swing radius just 1540mm, whether you're digging foundations, cleaning ditches, or working between buildings, the LW65 gives you the reach and agility to get it done.
—Travel Fast, Move Freely Across Sites
25km/h top speed gets you from job to job without trailering. Hydraulic drive and 7.00-15 tyres (8 in total) provide stable traction across paved roads, dirt paths, and muddy fields, keeping your project on schedule.
—Work All Day in Total Comfort
A spacious fully sealed cab with air conditioning keeps you cool in summer and warm in winter; pilot servo controls respond to the lightest touch; bright LED lights keep you working safely after dark, stay comfortable, stay productive, from sunrise to sunset.
?
Specifications:
| ENGINE | |
| Emission Standard | China stage III |
| Make /Model | YANMER/4TNV98L |
| Power /Rotation speed | 44.4kW |
| DRIVING SYSTEM | |
| Maximum Travel speed | 25km/h |
| Tire model/Number of tires | 7.00-15/8 |
| Driving type | Hydraulic drive |
| BRAKE SYSTEM | |
| Brake type | Wet type brake |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.21m3 |
| Swing speed | 12rpm |
| Maximum Grade ability | 25° |
| Maximum Bucket digging force | 48KN |
| Maximum Arm digging force | 35KN |
| Hydraulic system pressure | 28Mpa |
| Machine weight | 6200kg |
| Fuel tank | 115L |
| Hydraulic oil tank | 88L |
| Boom length | 3350mm |
| Arm length | 1750mm |

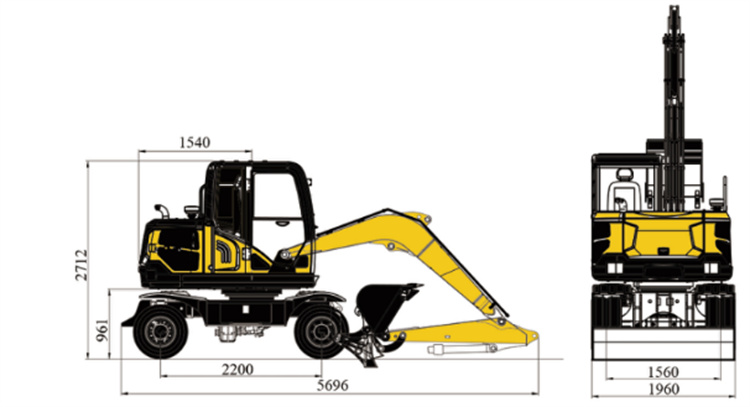

| MACHINE SIZE | |
| Overall dimension (L*W*H) | 5696mm*1960mm*2712mm |
| Height of cabin | 2712mm |
| Wheel base/Tread | 2200mm/1560mm |
| Minimum Ground clearance | 235mm |
| Swing radius at tail | 1540mm |

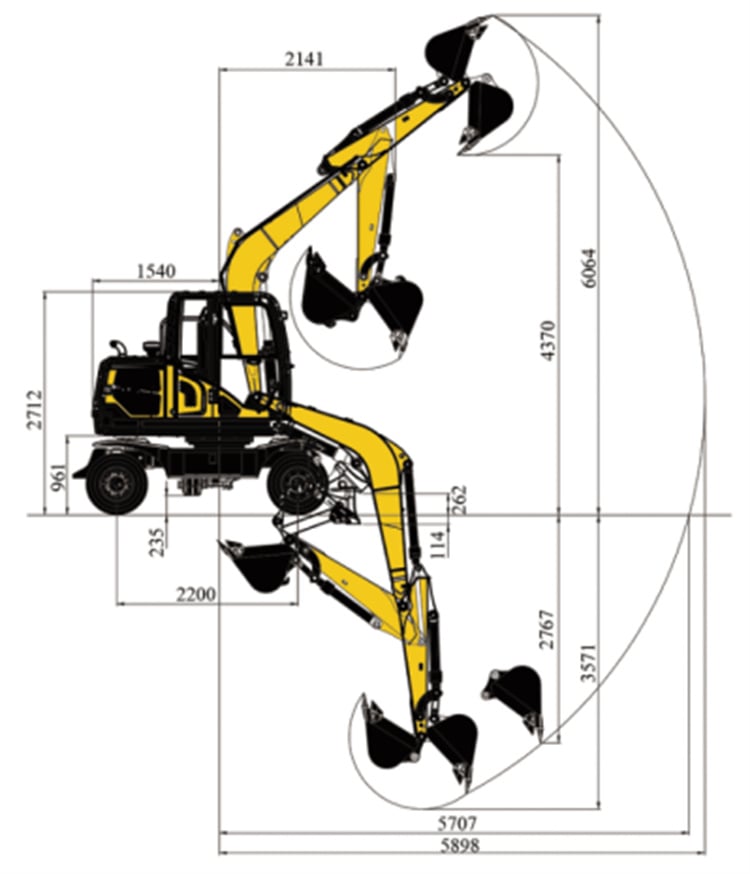

| WORKING RANGE | |
| Maximum Digging height | 6064mm |
| Maximum Dumping height | 4370mm |
| Maximum Digging depth | 3571mm |
| Maximum Vertical digging depth | 2767mm |
| Maximum Digging radius | 5898mm |
| Minimum swing radius | 2141mm |
| Maximum lifting height of dozer blade | 262mm |
| Maximum cutting depth of dozer blade | 114mm |
?
AOLITE Brand LW65 wheel excavator package:
-- 2 sets in 1*40HQ container
