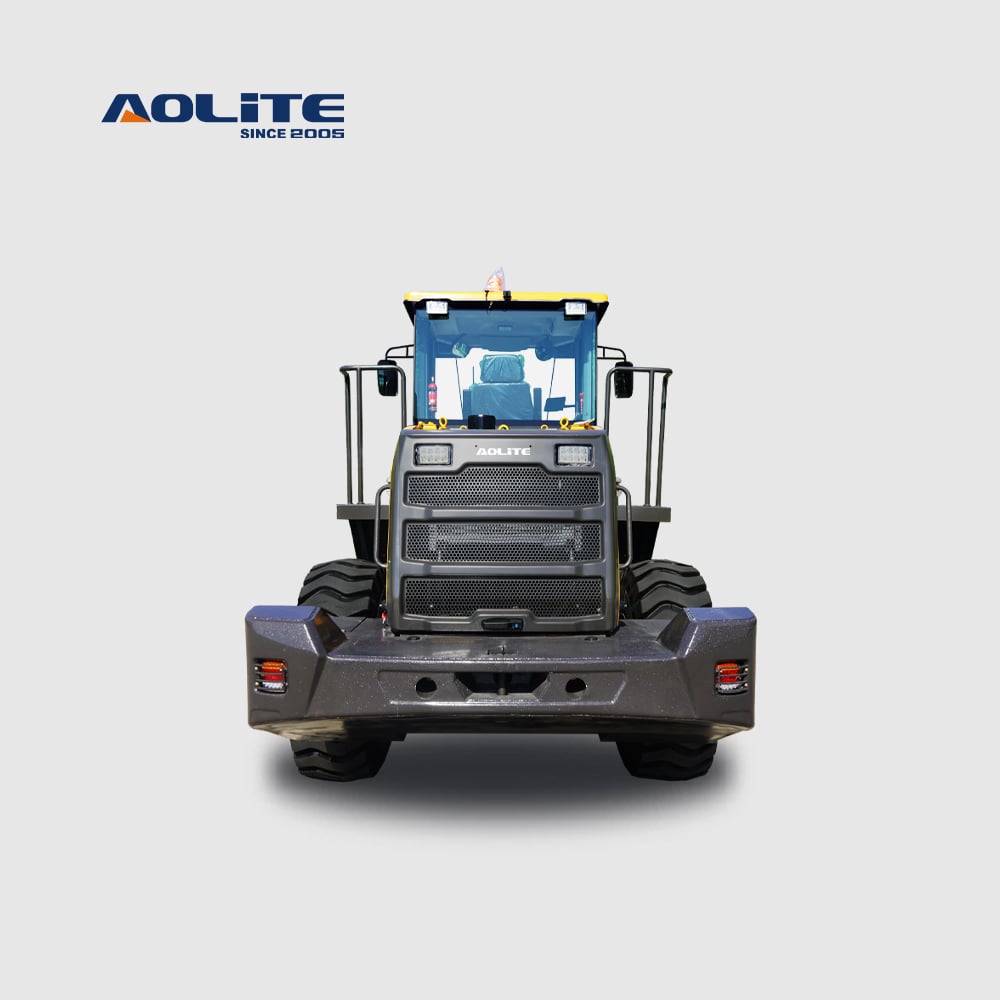

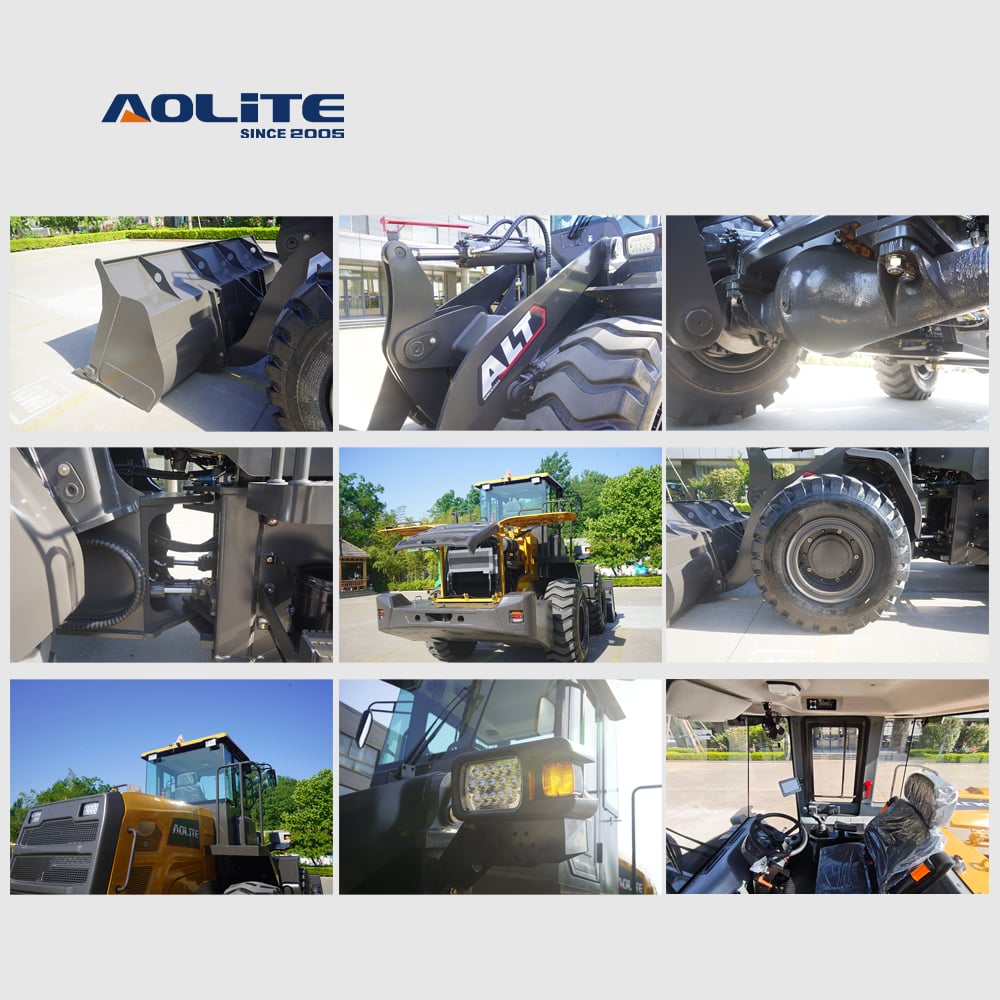

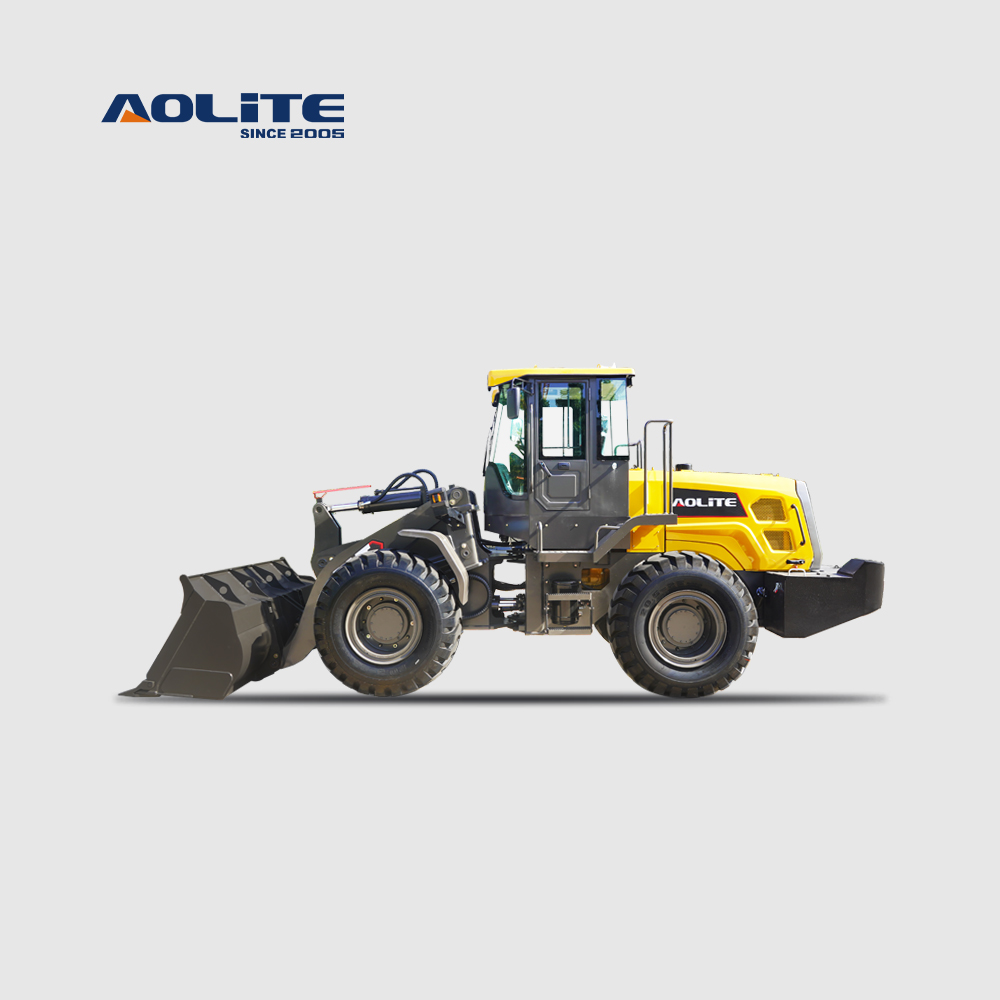

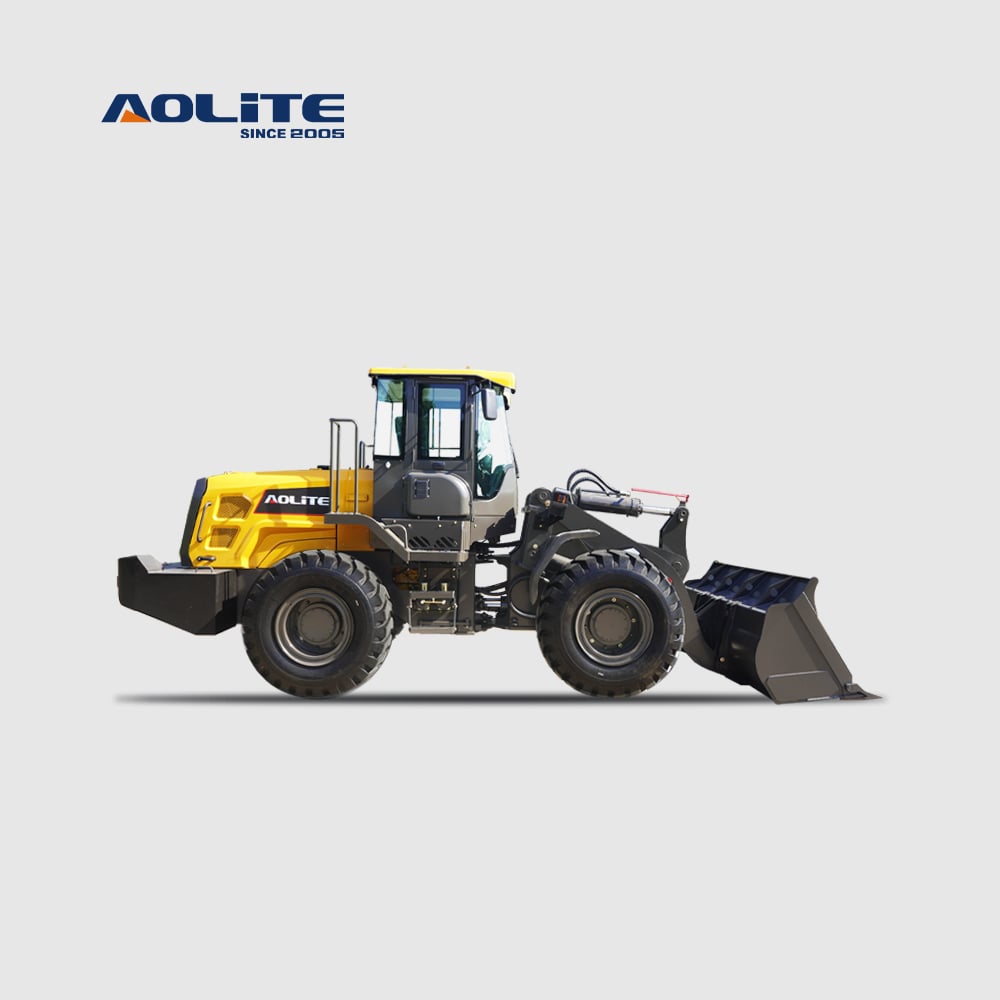

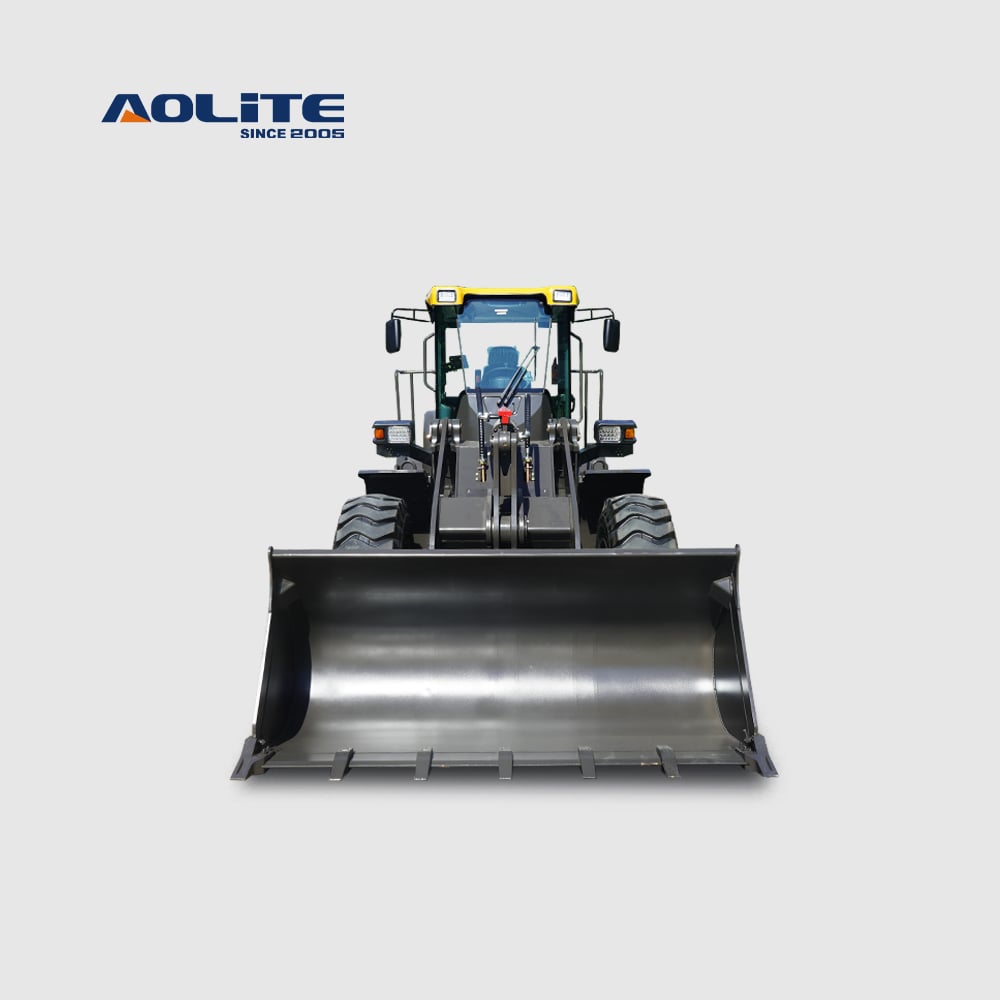

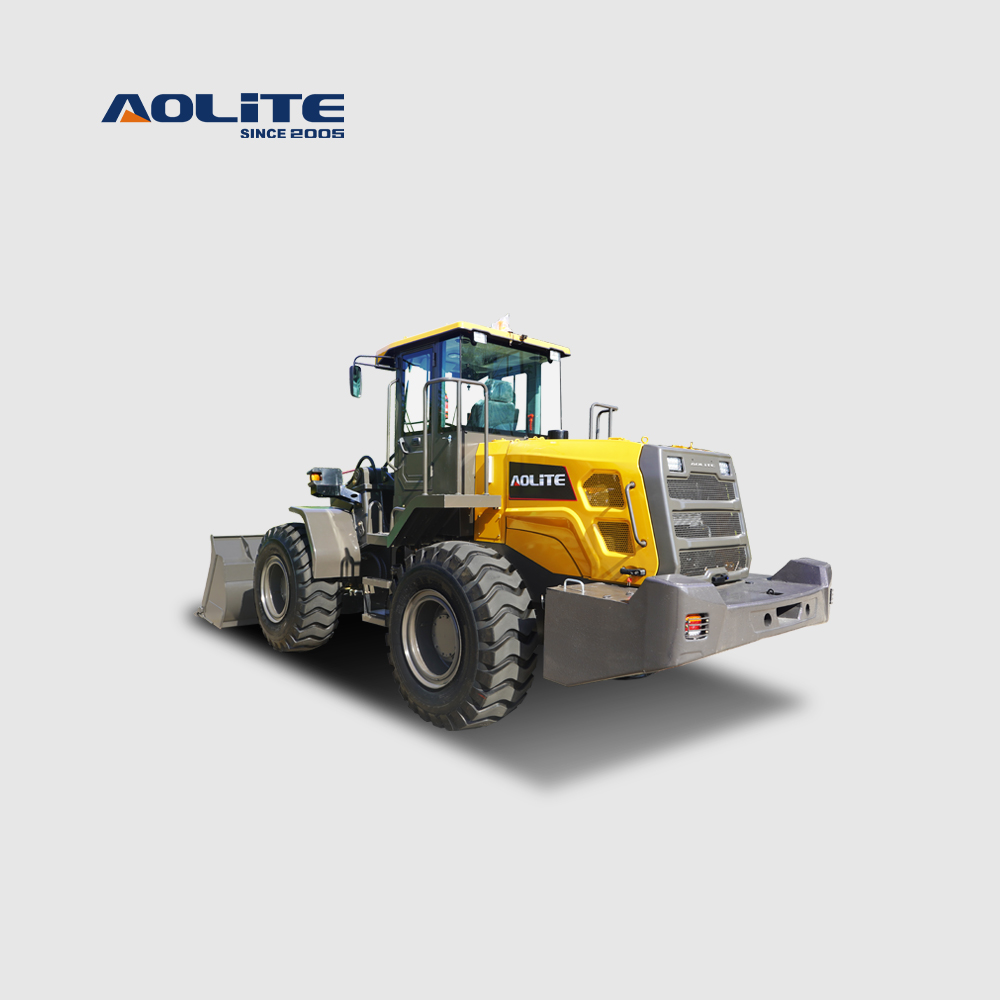

"AOLITE" brand 640T diesel wheel loader
?
—Lift 4 Tons Per Load
4000kg rated capacity – move more material in fewer cycles, from gravel and sand to coal and aggregate.
—Power Through Tough Piles
127KN breakout force and 125KN traction force – easily dig into compacted dirt, gravel, or stockpiles.
—Load High Trucks with Ease
2950mm dump height and 1055mm dump reach – perfect for high-side dump trucks and hoppers.
—Work All Day in Comfort & Safety
Air-assisted disc brakes on all four wheels, planetary transmission with 2 forward speeds, and a spacious cab – designed for long shifts and tough conditions.
?
| Rated loading | 4000kg |
| Overall weight | 13500kg |
| Bucket capacity | 2.3m3 |
| Maximum traction force | 125KN |
| Maximum breakout force | 127KN |
| Maximum grade ability | 30℃ |
| Maximum dump height | 2950mm |
| Maximum dump reach | 1055mm |
| Overall dimension (L×W×H) | 7295*2574*3324mm |
| Model | WEICHAI WP6G175E22 |
| Type | lnline water cooling dry cylinder injection |
| NO. of cylinder-bore*stroke | 105* 130mm |
| Rated power | 129kW-2200r/min |
| Maximum torque | 640N.m |
| Emission standards | Tire 2 |
| Torque converter | Single-stage four-element dual-turbine torque converter |
| Gearbox mode | Planetary power transmission |
| Gears | 2 forward shift ?1reverse shift |
| Maximum speed | 38km/h |
| Main reducing spiral | Bevel gear grade 1reduction |
| Decelerating mode | Planetary reduction grade 1 |
| Wheel base (mm) | 2800mm |
| Wheel tread | 2250mm |
| System working pressure | 16MPa |
| Boom lifting time | 5.73 |
| Total time | 10±0.2s |
| Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual disk brake |
| Type specification | 20.5-25 |
| Front tyre pressure | 0.4Mpa |
| Rear tyre pressure | 0.35Mpa |
?
AOLITE Brand 640T wheel loader package:
-- 1 set in 1*40HQ container
