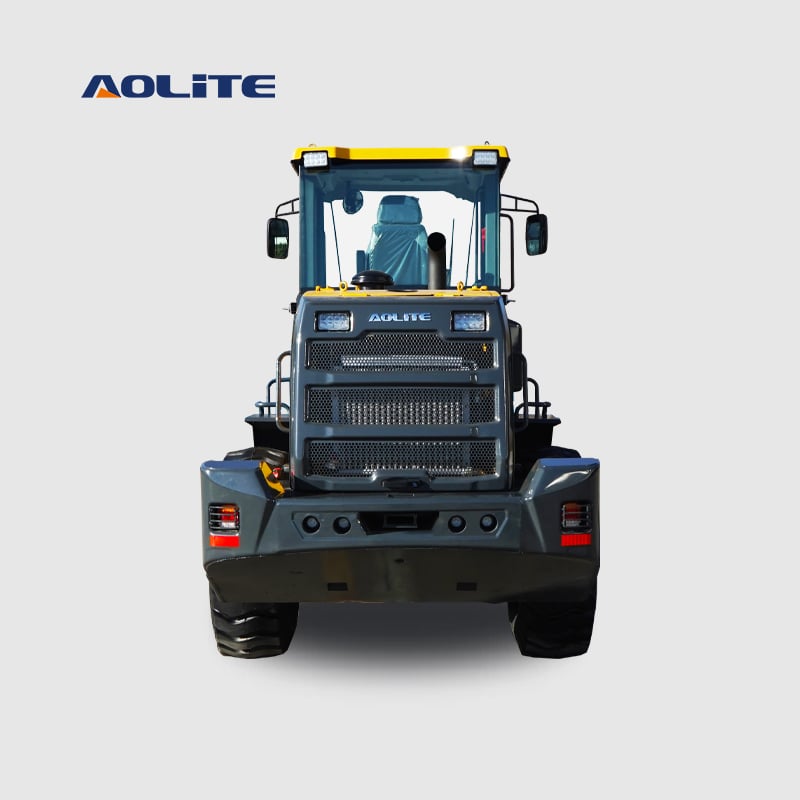

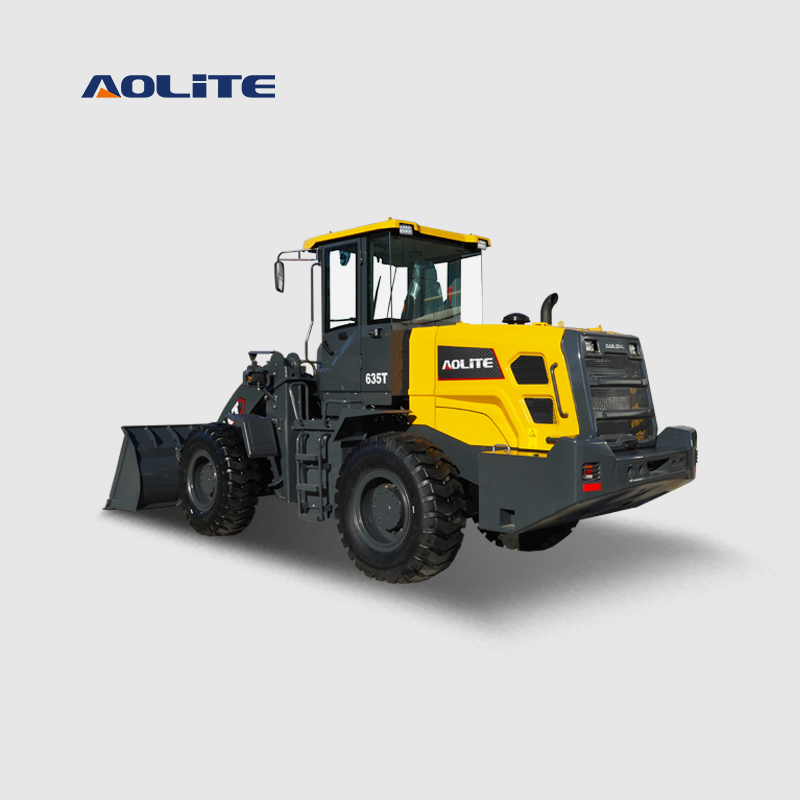

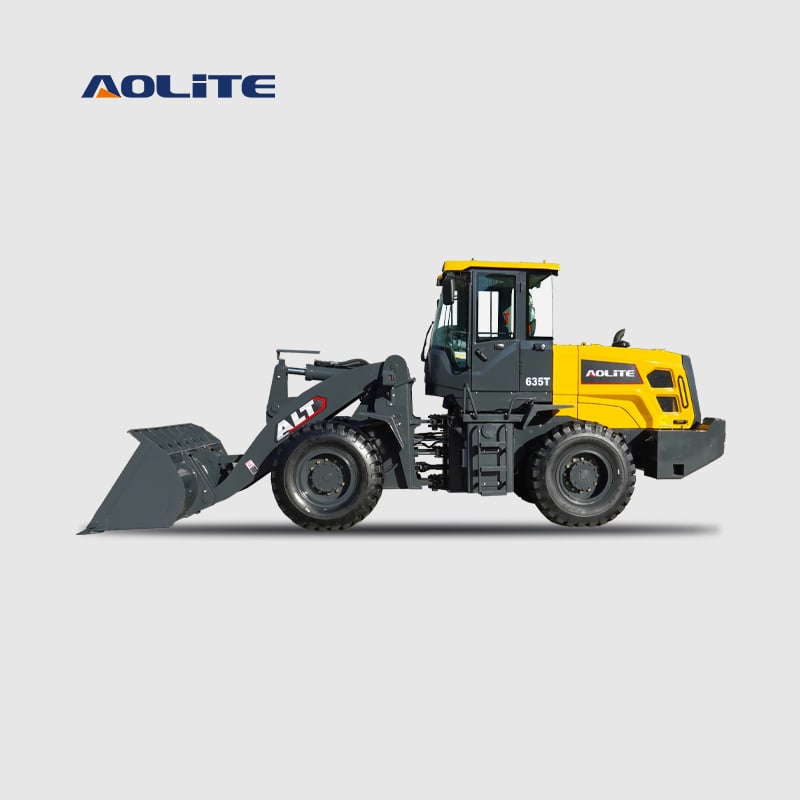

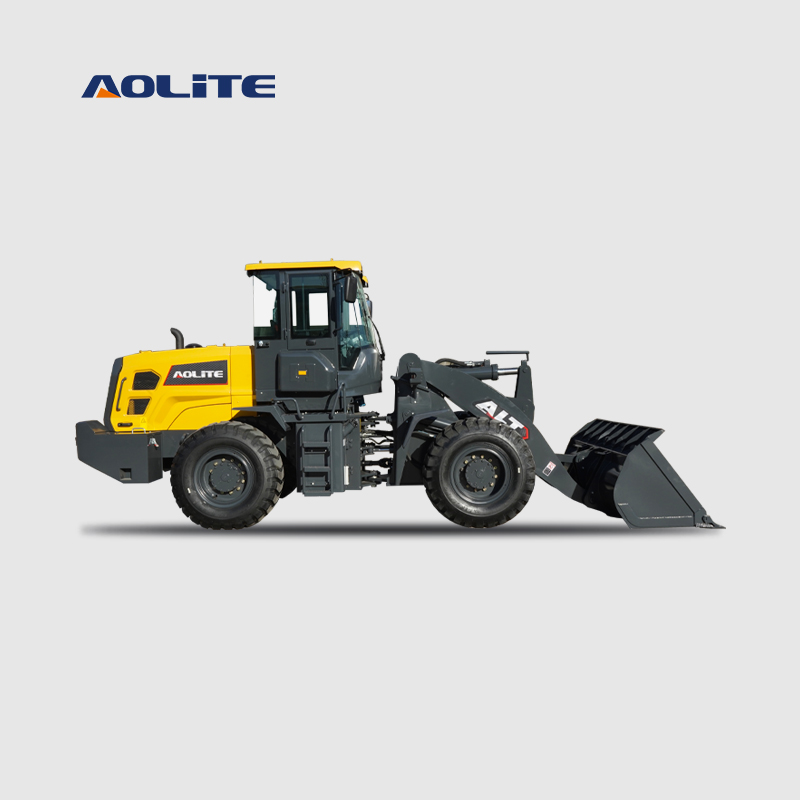

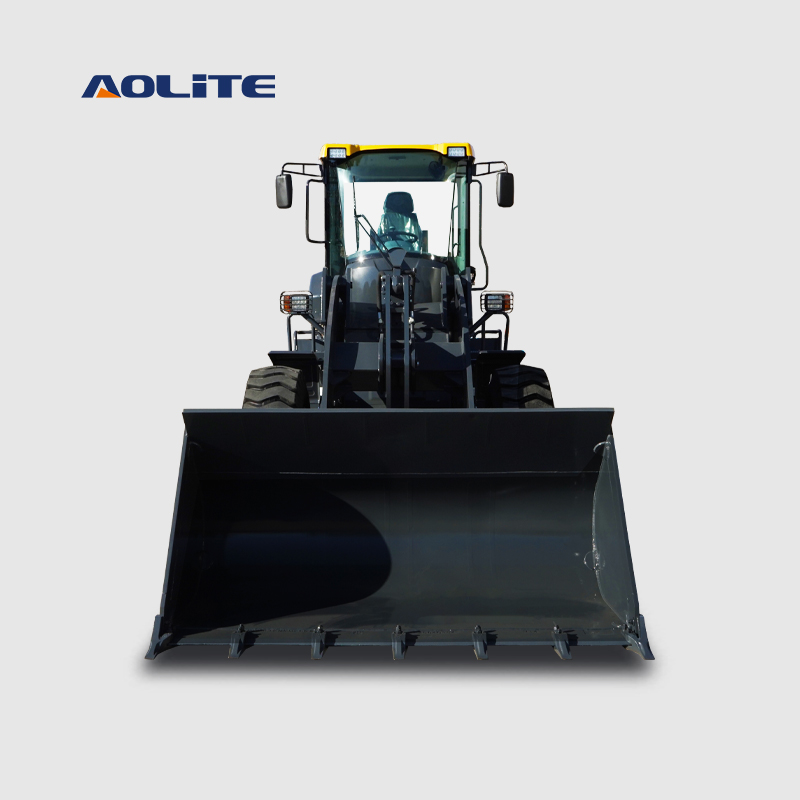

"AOLITE" brand 635T diesel wheel loader
?
—High-Torque Power & Perfect Match
Powered by a high-torque Weichai engine with a custom-developed power curve. Perfectly matched with a high-pressure, low-flow hydraulic system for powerful performance and low fuel consumption.
—Robust Transmission, Proven Reliability
Equipped with the widely trusted SHANTUI fixed-axis gearbox and heavy-duty drive axle, forming a mature, reliable, and high-load-bearing drivetrain.
—Fast & Efficient Loading Cycle
Features a large-displacement, single-pump diversion hydraulic system with increased pressure (20.5MPa), delivering strong cylinder force and rapid lifting speed for faster loading.
—Enhanced Strength, Reduced Stress
Key structural components are optimized using Finite Element Analysis (FEA) technology to minimize stress concentration and eliminate weak points, significantly boosting durability.
?
| Rated load(Kg) | 3500 |
| Bucket capacity(m3) | 2 |
| Overallweight (Kg) | 10600 |
| Max.dumping height(mm) | 3240 |
| Dumping distance(mm) | 1240 |
| Gearbox model | 320B |
| Transmission mode | Hydraulic torque converter |
| Low gear(Km/h) | 8 |
| High gear(Km/h) | 40 |
| Max.steering angle | ±35° |
| Length(mm) | 7750 |
| Width(mm) | 2425 |
| Height(mm) | 3280 |
| Bucket width (mm) | 2425 |
| Wheel base(mm) | 3000 |
| Wheel thread(mm) | 1825 |
| Min.ground clearance(mm) | 320 |
| Engine model | WP6G140E22 |
| Engine brand | WEICHAI DEUTZ |
| Rated power (kw) | 105 |
| Rated speed(r/min) | 2200 |
| Alxe model | ZL30 |
| Tyre | 17.5-25 |
?
AOLITE Brand 635T wheel loader package:
-- 3 sets in 2*40HQ container
